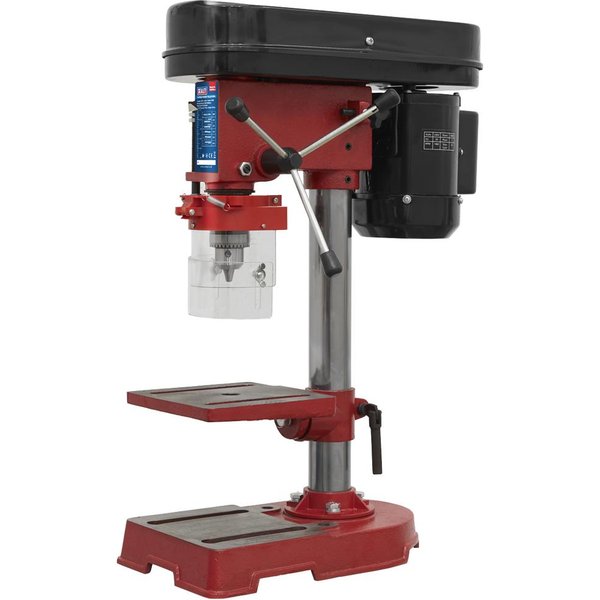

SDM30 5 Speed Hobby Pillar Drill

The Sealey SDM30 is a compact 5-speed pillar drill designed for precise drilling operations in wood, plastic and metal. This bench-mounted hobby drill combines versatility with user-friendly operation, making it suitable for workshops where space is at a premium. The variable speed selection allows operators to match drilling speeds to different materials, with settings ranging from 580rpm for metalwork up to 2650rpm for softer materials. Built with operational safety in mind, this pillar drill incorporates a no-volt safety switch that prevents accidental start-up after power interruption. The drive belt remains protected during operation through mechanical guards, whilst a drill guard provides additional operator protection. The 13mm capacity chuck accepts a wide range of standard drill bits for different applications. With a chuck-to-column distance of 104mm and 50mm spindle travel, the SDM30 offers adequate capacity for small to medium drilling tasks. The compact footprint and relatively lightweight 11kg construction make it practical for benchtop mounting in home workshops, garages, or light trade environments. The quiet operation and smooth running characteristics contribute to a more comfortable working environment during extended use. Features and Benefits: • Five speed settings (580-2650rpm) for versatility across different materials • No-volt safety switch prevents accidental start-up • Mechanical protection denies access to drive belt during operation • Compact design suitable for space-limited workshops • 13mm chuck capacity accepts standard drill bits • Quiet and smooth operation for comfortable use Specifications: • Base Size: 200 x 310mm • Brand: Sealey • Collar Diameter: Ø40mm • Column Diameter: Ø46mm • Drilling Capacity (Chuck Size): 13mm • Maximum Distance Spindle to Base: 290mm • Maximum Distance Spindle to Table: 200mm • Motor Power (Start): 185W(350W) • Nett Weight: 11kg • Number of Speeds: 5 • Overall Height: 580mm • Speed Range: 580-2650rpm • Spindle Centre to Column: 104mm • Spindle Nose Taper: MT2 • Spindle Travel: 50mm • Supply: 230V • Swing: 208mm • Working Base Surface Size: 138 x 180mm • Working Table Surface Size: 158 x 160mm
