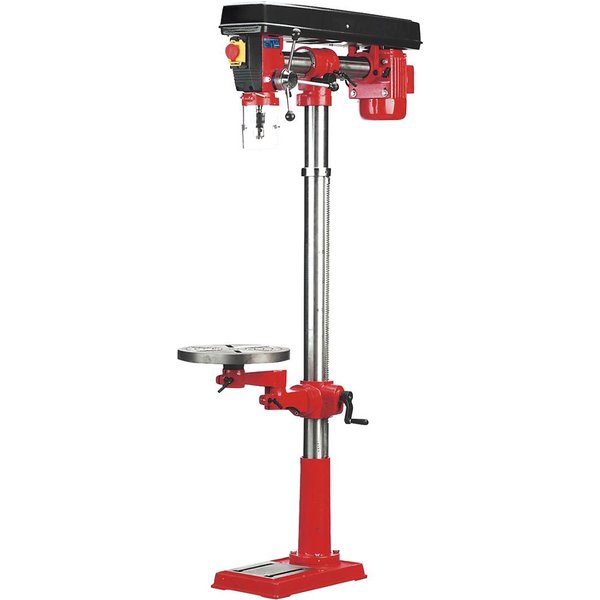

GDM1630FR 5 Speed Radial Floor Pillar Drill

The Sealey GDM1630FR is a 5-speed radial floor pillar drill designed for precision drilling applications across engineering, fabrication and workshop environments. This heavy-duty floor standing pillar drill features a radial arm assembly that enables off-table drilling and angle drilling operations, with a maximum throat depth of 420mm providing exceptional versatility for larger workpieces. Built with robust construction for demanding workshop use, this pillar drill is equipped with comprehensive safety features including a no-volt release switch and pulley cover cut-out microswitch to prevent accidental starting. The radial arm is controlled by a rack and pinion assembly, allowing precise positioning of the drill bit for accurate hole placement. The 16mm capacity chuck with MT2 taper suits a wide range of drilling applications. With five speed settings ranging from 500 to 2450rpm and an 80mm spindle travel, this radial pillar drill is ideal for drilling operations in metal fabrication, engineering workshops and general manufacturing environments. The 550W motor delivers reliable performance whilst the substantial 59kg weight ensures stability during operation. An optional mortise attachment (Model No. MA10) extends the functionality for woodworking applications. Features and Benefits: • Radial feature allows off-table and angle drilling for increased versatility • No-volt release switch prevents accidental starting for enhanced operator safety • Rack and pinion controlled radial arm enables fine positioning of drill bit • Maximum throat depth of 420mm accommodates larger workpieces • Five speed settings from 500-2450rpm suit various materials and drill bit sizes • Heavy-duty construction with 59kg weight ensures stability during operation Specifications: • Base Size: 420 x 250mm • Brand: Sealey • Collar Diameter: Ø60mm • Column Diameter: Ø70mm • Drilling Capacity (Chuck Size): 16mm • Maximum Distance Spindle to Base: 1280mm • Maximum Distance Spindle to Table: 830mm • Motor Power: 550W • Nett Weight: 59kg • Number of Speeds: 5 • Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm • Overall Height: 1620mm • Radial Arm Travel: 285mm • Speed Range: 500-2450rpm • Spindle Centre to Column: 420mm • Spindle Nose Taper: MT2 • Spindle Travel: 80mm • Supply: 230V • Swing: 840mm • Working Base Surface Size: 210 x 190mm • Working Table Surface Size: Ø310mm
