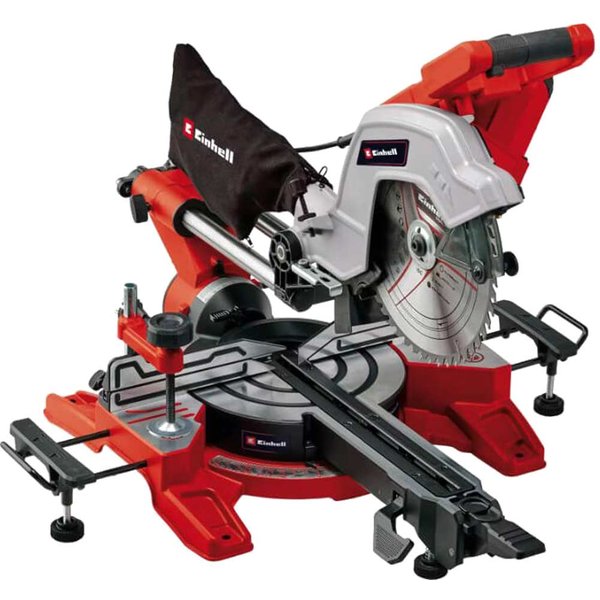

TE SM Dual Bevel Sliding Compound Mitre Saw 254mm

The TE-SM 10 L is a dual bevel sliding compound mitre saw which can cut through materials up to 305mm wide and 85mm deep in a single pass. The turntable base has snap-in preset positions for commonly required angles and the saw head can be tilted up to 45° in either direction. The sliding feature is also paired with a depth stop function which allows the blade to be levelled out at a fixed height if required, and thus allows for grooves and channels to be cut into the material, rather than cutting all the way through. Features and Benefits • UK version: fitted with a standard UK 240v mains plug • Sliding action for sawing wider workpieces • Turntable with snap-in positions at the most common angles • Dual bevel: head can be tilted up to 45° in either direction • Laser guide line shows where the blade will land for quick and easy setup every time • Includes material supports and hold down clamp • Easy-to-reach spindle lock for simple saw blade changes • Clearly visible angle scales • Dust port can be connected to a vacuum cleaner or dust extractor • Depth stop for cutting out grooves Specifications • Voltage: 240v UK Mains • Wattage: 2000 W • Blade Diameter: 254mm • Blade Bore Diameter: 30mm • Max Cutting depth 45° x 45°: 45 mm • Max Cutting depth 90° x 90°: 85 mm • Max Cutting width 45° x 45°: 215 mm • Max Cutting width 90° x 90°: 305 mm • Max Bevel: 45° • Max Swivel Range: 47° • Machine Weight: 15.09kg Contents • TE-SM 10 L Dual Bevel Sliding Compound Mitre Saw 240v • Material Support (x2) • Hold Down Clamp • Dust Bag • Circular Saw Blade (254mm, 48 Tooth)
